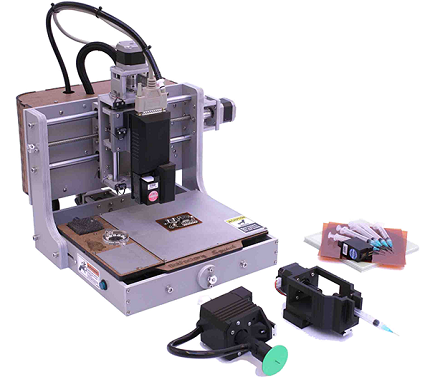

BotFactory SV2
Model Comparison
Starter
Our entry level product works well with larger components and for a first approach to electronics design.
Printing:
Inkjet Technology:
Thermal
Minimum Line Width:
8mil (200um)
Minimum Spacing:
16mil (400um)
Max Number of Layers:
Up to 2 layers
Max print size:
Up to 5in x 6in
Paste:
Dispense solder paste or conductive glues
Pick and Place:
This system can pick and place components with pitch size 24mils or larger.
US$19,999
*Consumables sold separately
Enhanced
The enhanced printer is designed for applications that requier newer and smaller components.
Printing:
Inkjet Technology:
Thermal
Minimum Line Width:
8mil (200um)
Minimum Spacing:
12mil (300um)
Max Number of Layers:
Up to 4 layers
Max print size:
Up to 5in x 6in
Paste:
Dispense solder paste or conductive glues
Pick and Place:
This system can pick and place components with pitch size above 20mils.
US$34,999
*Consumables sold separately
Professional
Designed for advanced users. It allows applications with modern components and smaller sizes.
Printing:
Inkjet Technology:
Thermal
Minimum Line Width:
8mil (200um)
Minimum Spacing:
8mil (200um)
Max Number of Layers:
Up to 6 layers
Max print size:
Up to 5in x 6in
Paste:
Dispense solder paste or conductive glues
Pick and Place:
This system can pick and place components with pitch size above 16mils.
US$56,999
*Consumables sold separately
Premium
The most precise Additive Manufacturing experience.
.
Printing:
Inkjet Technology:
Dual Piezo
Minimum Line Width:
8mil (200um)
Minimum Spacing:
8mil (200um)
Max Number of Layers:
Up to 8 layers
Max print size:
Up to 4in x 6in
Paste:
Dispense solder paste or conductive glues
Pick and Place:
This system can pick and place components with pitch size above 16mils.
US$64,999
*Consumables sold separately
All BotFactory SV2 Printers come with:
- 1-Year Limted Warranty
- 14-day Money Back Guaranteed

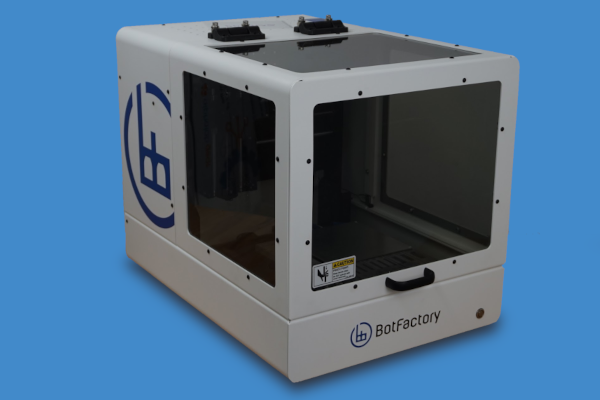

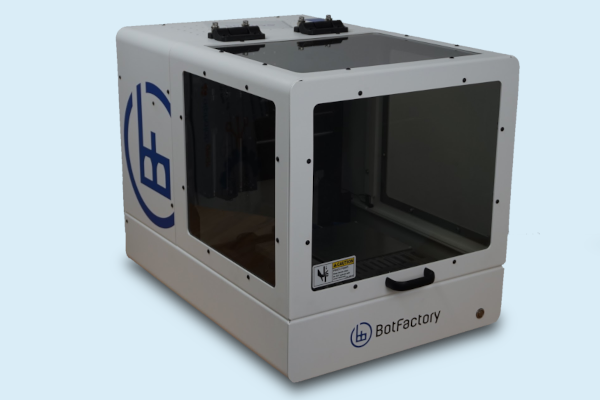

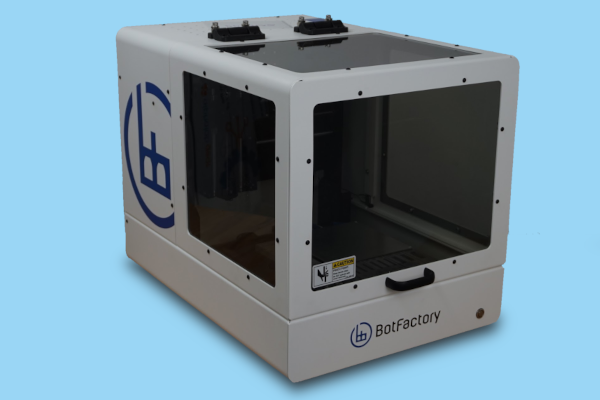

- Enclosure
* Hardware and software will change depending on the model.
